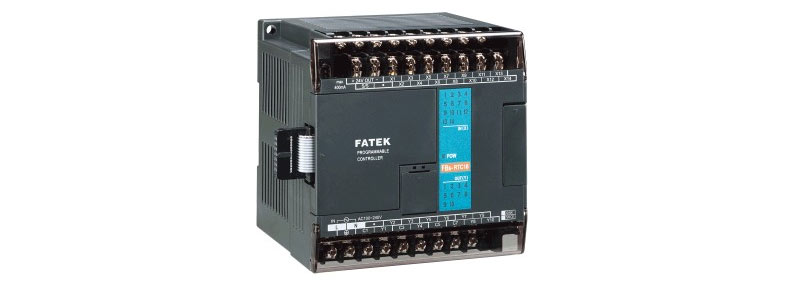

Temperature Measurement Module.
16 channel RTD temperature input module with 0.1 resolution.
)
| Specification | FBs-16RTD |
| Number of input points | 16 points |
| Sensor type and temperature measurement range | 3-wire RTD sensor (JIS or DIN) Pt100(-200~850˚C) Pt1000(-200~600˚C) |
| Temperature Compensation | ─ |
| Resolution | 0.1°C |
| Temperature refresh time | 2 or 4 seconds |
| Overall Precision | ± 1% |
| Isolation method | Transformer(power) and photocouple(signal) isolation, 500VAC, 1 minute,no isolation between each channel |
| Power consumption | 24VDC -15%/+20%,2W max. |
| Wiring mechanism | 7.62 mm fixed terminal block |
