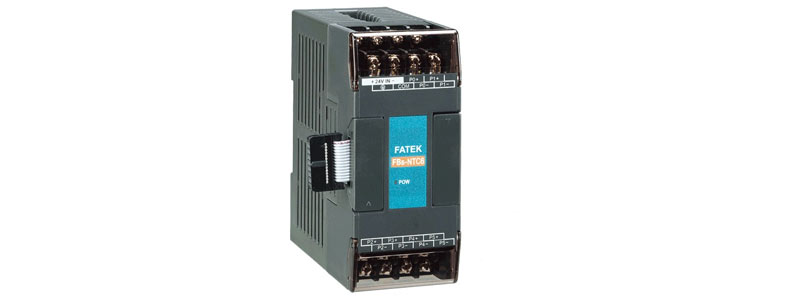

6 channel NTC temperature input module.
| Specification | FBs-6NTC |
| Number of input points | 6 points |
| Sensor type and temperature measurement range | NTC sensor 10 KΩ at 25˚C, B optional -20~100˚C |
| Temperature Compensation | ─ |
| Resolution | 0.1°C |
| Temperature refresh time | 2 or 4 seconds |
| Overall Precision | ±1% of full scale at 25˚C |
| Isolation method | Transformer(power) and photocouple(signal) isolation, 500VAC, 1 minute,no isolation between each channel |
| Power consumption | 24VDC -15%/+20%,2W max. |
| Wiring mechanism | 7.62 mm fixed terminal block |
