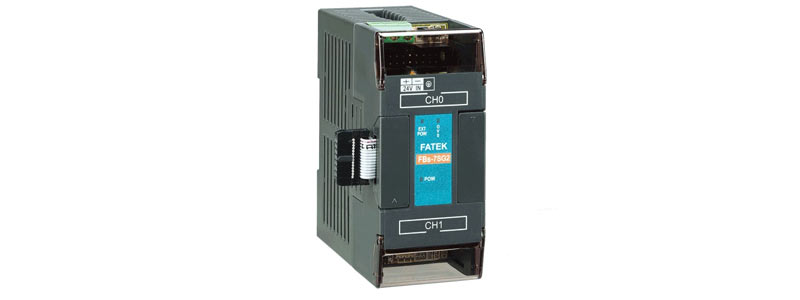

Numeric I/O expansion Module./
1 set (8 digits) 7 segment LED display (or 64 Points independent LED) output display module./
16-Pin Header connector
| Specification | FBs-7SG1 | ||
| Display mode | Decoding display | 4 bits to represent a character. It can display 16 kinds of pre-decoded character including 0 ~ 9, -, E, H, c, t and blank | |
| Non-decoding display | Each segment controlled by 1 individual bit, one 7 segment digits needs 8 bits to control (including decimal), displayable any set of segments (EX: character and number display) or each LED display | ||
| Display number of character (points) | 1 channel, 7 segment 8 words / 16 segment 4 words or 64 points individual LED | ||
| Refresh time for display | 10mS max. | ||
| LED driving specification | Driving current | 40mA / segment | |
| Display method | 1~8 duty multiplexing display | ||
| Driving voltage | Low voltage | 5VDC (can be 10% up) | |
| High voltage | 7.5V, 10V, 12.5V selectable (can be 10% up) | ||
| Fine tune of voltage drop | 0.6V, 1.2V, 1.8V selectable | ||
| Over voltage driving indication | Each channel has individual Over Voltage (O.V.) driving LED indication (should be under Test Mode) | ||
| Isolation method | Transformer (power) and photocouple (signal) isolation, 500VAC, 1 minute | ||
| Power consumption | 24VDC–15%/+20%, static consumption is 2W max., dynamic current is increased according to display | ||
| Wiring mechanism | 16 pins flat cable, 2.54mm header connector | ||
